● 广泛用于风扇控制板、LED等降压电路 。
● Widely used in step-down circuit of fan speed regulation, LED and soon.

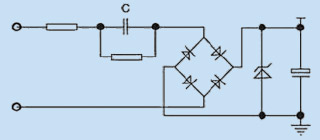

典型线路图/Typical circuit
| 气候类别/Climate Category | 40/105/21 |
| 适用温度范围/Temp. Range | -40℃~+85℃ |
| 容量范围/Capacitance Range | 0.01 ~ 2.2μF |
| 额定电压/Rated Voltage | 250V.DC, 400V.DC、630V.DC |
| 容量偏差/Capacitance Tolerance | ±5% (J))、± 1 0 % ( K)、± 2 0 % ( M ) |
| 损耗角正切/Dissipation Factor | tgδ≤0.001 (at 1kHz) |
| 绝缘电阻/Insulation Resistance | C≤0.33μF Rs ≥ 15000 SMΩ (23℃, 1min) C > 0.33 μF C×Rs ≥ 5000 S (23℃，1min) |
| 脉冲能力/Withstand Current Ability | dv/dt > 100V/us |
| 阻燃性/Flammability | UL94V-0级 |
| 耐电压/Withstand Voltage | 17.5Un (10S) |
| 引用标准/Reference to Standard | 符合IEC 384-14GB/T13372-98 |
