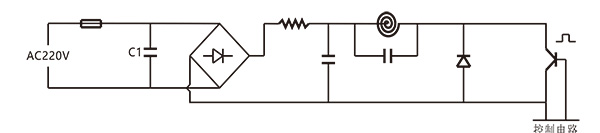

典型线路图/ Typical circuit
应用场合/ Applications
● 主要用于电磁炉高频谐振电路。
● Widely used for induction cooker resonance circuit.

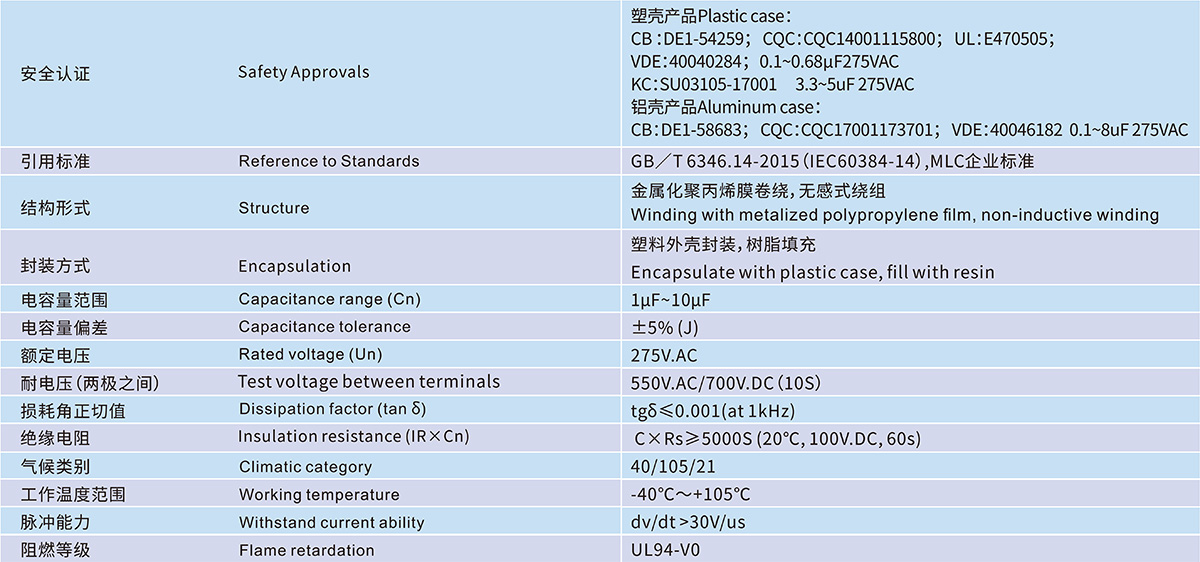

性能指标/ Technical data
| 气候类别/Climate Category | 40/105/21 |
| 适用温度范围/Temp. Range | -40℃~+105℃ |
| 容量范围/Capacitance Range | 3.3μF~10μF |
| 额定电压/Rated Voltage | 400V.AC |
| 容量偏差/Capacitance Tolerance | ±5% (J) |
| 损耗角正切/Dissipation Factor | tgδ≤0.001 (at 1kHz) |
| 绝缘电阻/Insulation Resistance | Cx RS≥5000S |
| 脉冲能力/Withstand Current Ability | dv/dt > 30V/us |
| 阻燃性/Flammability | UL94V-0级 |
| 耐电压/Withstand Voltage | 700VAC/10S |
| 引用标准/Reference to Standard | 符合GB/T 3984.1-2004, GB/T 14472 IEC60384-14, MLC企业标准 |

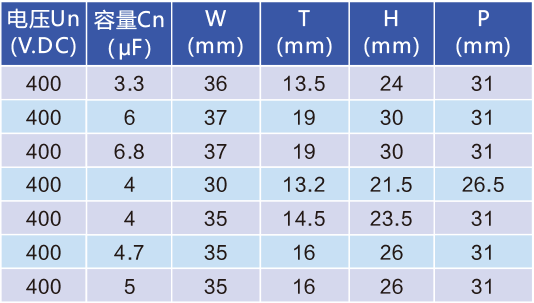

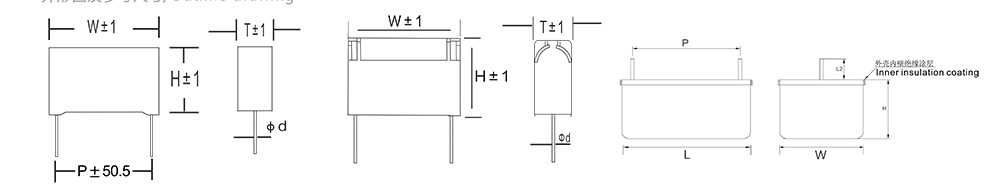

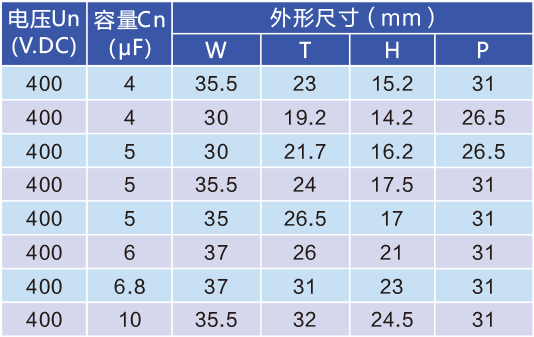

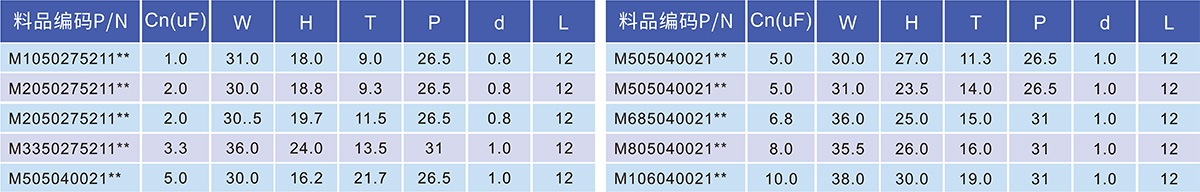

外形图及参考尺寸/Outline drawing
