● 主要用于电磁炉电源部分抑制噪声 和干扰。
● Used in noise suppression, electromagnetic interference suppression and connection to the supply mains for Induction cooker.
| 气候类别/Climate Category | 40/105/21 |
| 适用温度范围/Temp. Range | -40℃~+105℃ |

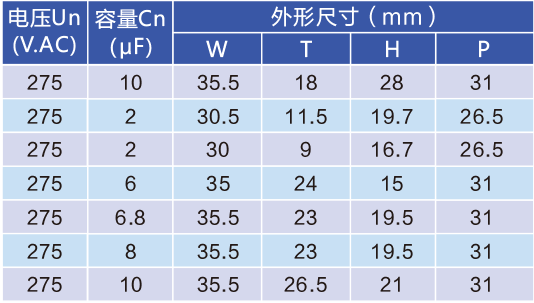

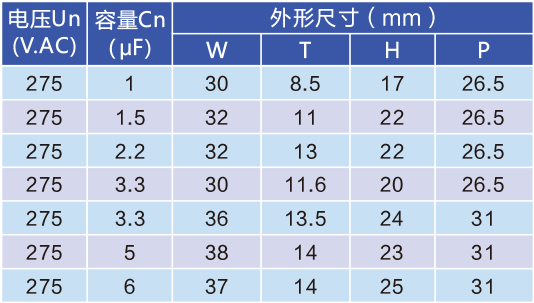

| 容量范围/Capacitance Range | 1μF~10μF |
| 额定电压/Rated Voltage | 275V.AC |
| 容量偏差/Capacitance Tolerance | ±5% (J) |
| 损耗角正切/Dissipation Factor | (tgδ) tgδ≤0.001 (at 1kHz) |
| 绝缘电阻/Insulation Resistance | Cx RS≥5000S |
| 脉冲能力/Withstand Current Ability | dv/dt > 30V/us |
| 阻燃性/Flammability | UL94V-0级 |
| 耐电压/Withstand Voltage | 550VAC/1200VDC/10S |
| 引用标准/Reference to Standard | 符合GB/T 3984.1-2004, GB/T 14472 IEC60384-14, MLC企业标准 |
