应用场合/ Applications

● 主要用于电磁炉高频谐振电路

●Used for induction cooker resonance circuit.

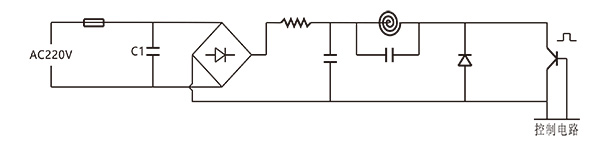

典型线路图/ Typical circuit

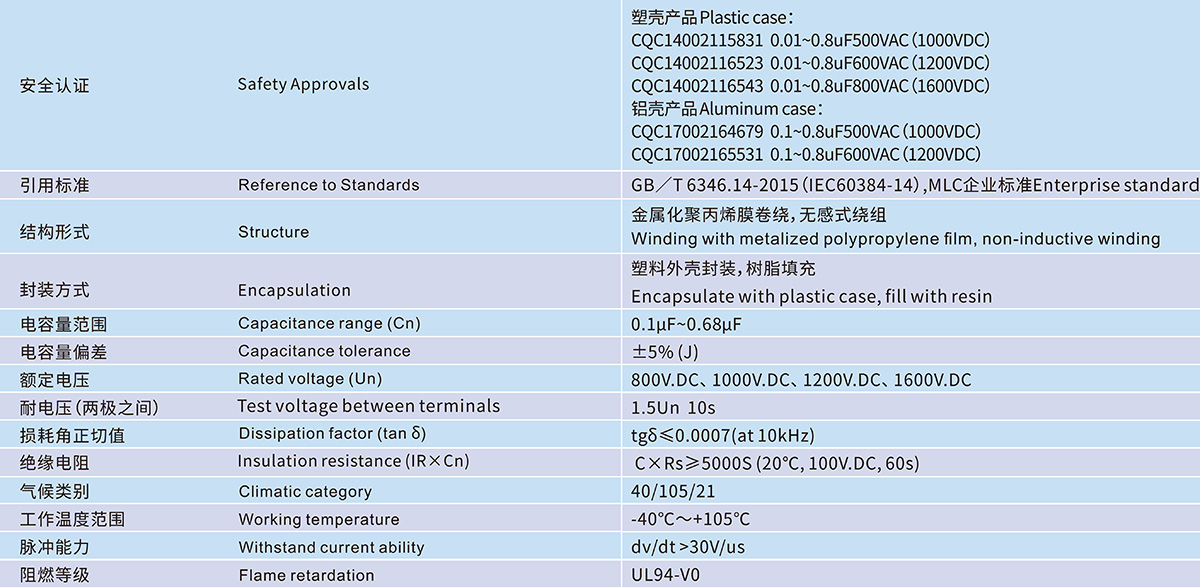

性能指标/ Technical data

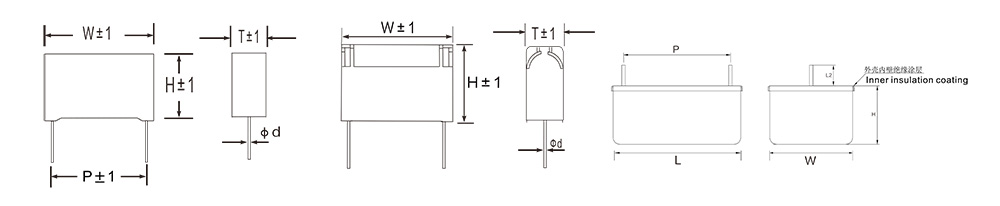

外形图及参考尺寸/Outline drawing

产品参数/Product datas

备注Note:

1、如果海拔使用高度超过了2000m,应考虑海拔对流冷却和外绝缘的影响。

lt should take consideration regarding to convectional cooling and outter insulation as long as the height is exceed 2000m.

2.其它容量、电压、尺寸系列可按用户需要定制。

Other capacitances, voltages and dimensions are available on request.

3、详细规格清单及参数,可查询公司官方网站,或来电、邮件咨询销售人员。

Detailed specifications list and parameters query company official website,or call, email inquiries.
