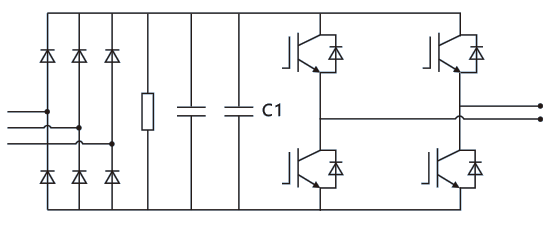

应用场合/ Applications

● SVG动态无功补偿设备

● 太阳能发电，风力发电用逆变器上

● 变频器，UPS，电焊机，电源

● 机车，电动汽车和混合动力

● SVG equipment

● Solar&Wind Power inverters

● Converters, power supply for Train

● Electronic vehicle and hybrid train

标签说明/Label Specification

性能指标/ Technical data

预期寿命曲线/Life expectancy grap

注:Uw为实际工作电压,Un为额定工作电压,0hotspot为最热点温度。

电容器的应用中,有多种因素会影响到电容器的使用寿命,比如电压、温度、电流、电网谐波、光照或辐射以及其它一些未知的因素。以下预期寿命曲线仅考虑电压、温度的关系,基于长期耐久性试验的合格结果,再通过预期寿命理论计算公式计算该电容在不同工况下的预期寿命。因此,预期寿命曲线仅作为选型参考,而不代表电容器的实际使用寿命,也不代表质保要求。

Remark: Uw is the actual working voltage,Un isthe rated working voltage, and 0hotspot is the hottest temperature.

ln the application of capacitors, there are many factors that will affect the service life of capacitors, such as voltage, temperature, current, grid harmonics, light or radiation, and some other unknown factors.The following life expectancy curve only considers the relationship between voltage and temperature.Based on the qualified results of long-term endurance test, the life expectancy of the capacitor under different working conditions is calcuiated

产品参数/Product datas

备注Note:

1.如果海拔使用高度超过了2000m,应考虑海拔对流冷却和外绝缘的影响。

lt should take consideration regarding to convectional cooling and outter insulation as long as the height is exceed 2000m.

2、其它容量、电压、尺寸系列可按用户需要定制。

Other capacitances,voltages and dimensions are available on request

.3、详细规格清单及参数,可查询公司官方网站,或来电、邮件咨询销售人员。

Detailed specifications list and parameters query company official website,or call, email inquiries.
