● SVG动态无功补偿设备
● 太阳能发电，风力发电用逆变器上
● 变频器，UPS，电焊机，电源机车，电动汽车和混合动力车
● SVG equipment
● Solar&Wind Power inverters
● Converters, power supply for Train ,Electronic vehicle and hybrid train.

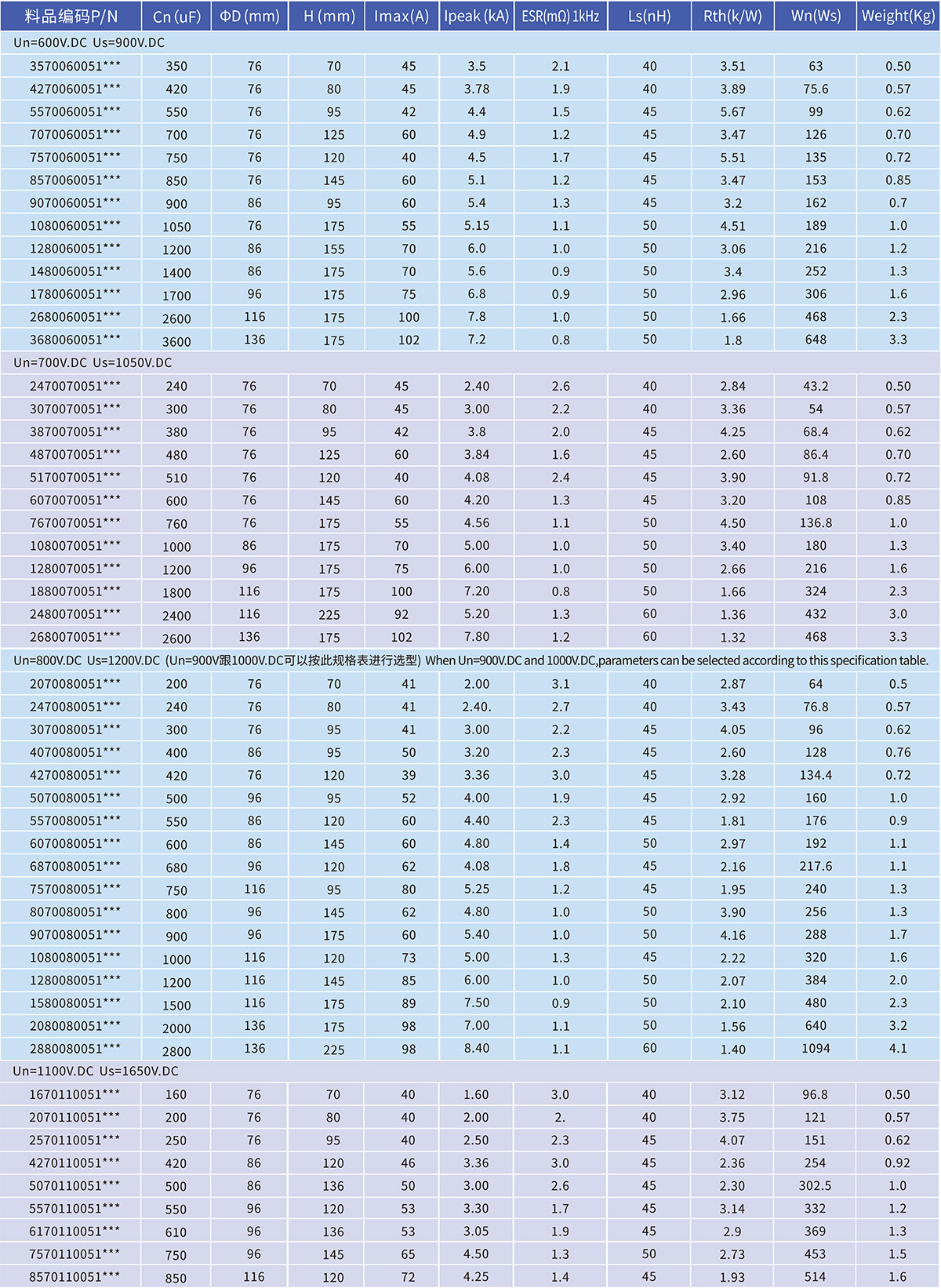

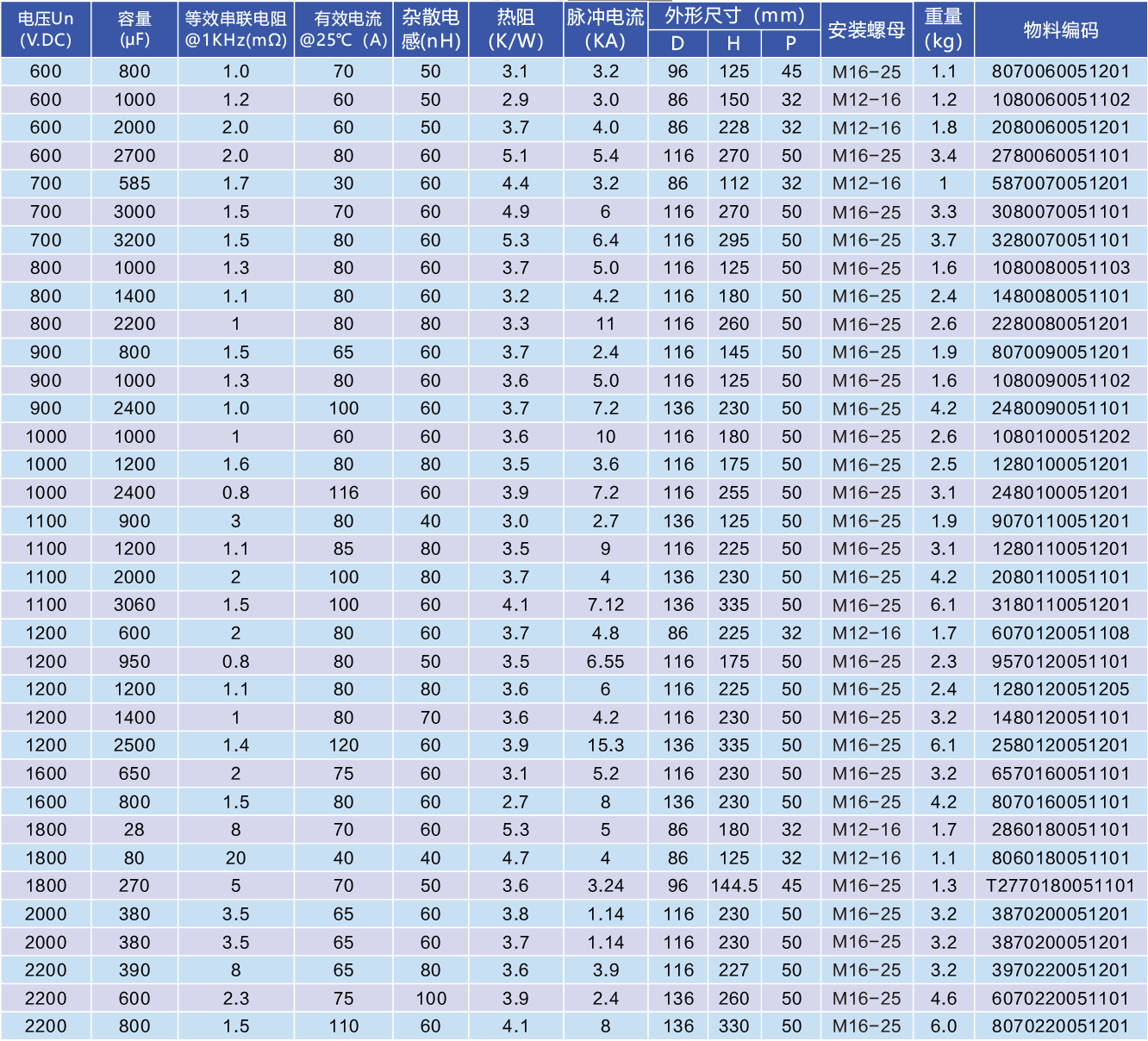

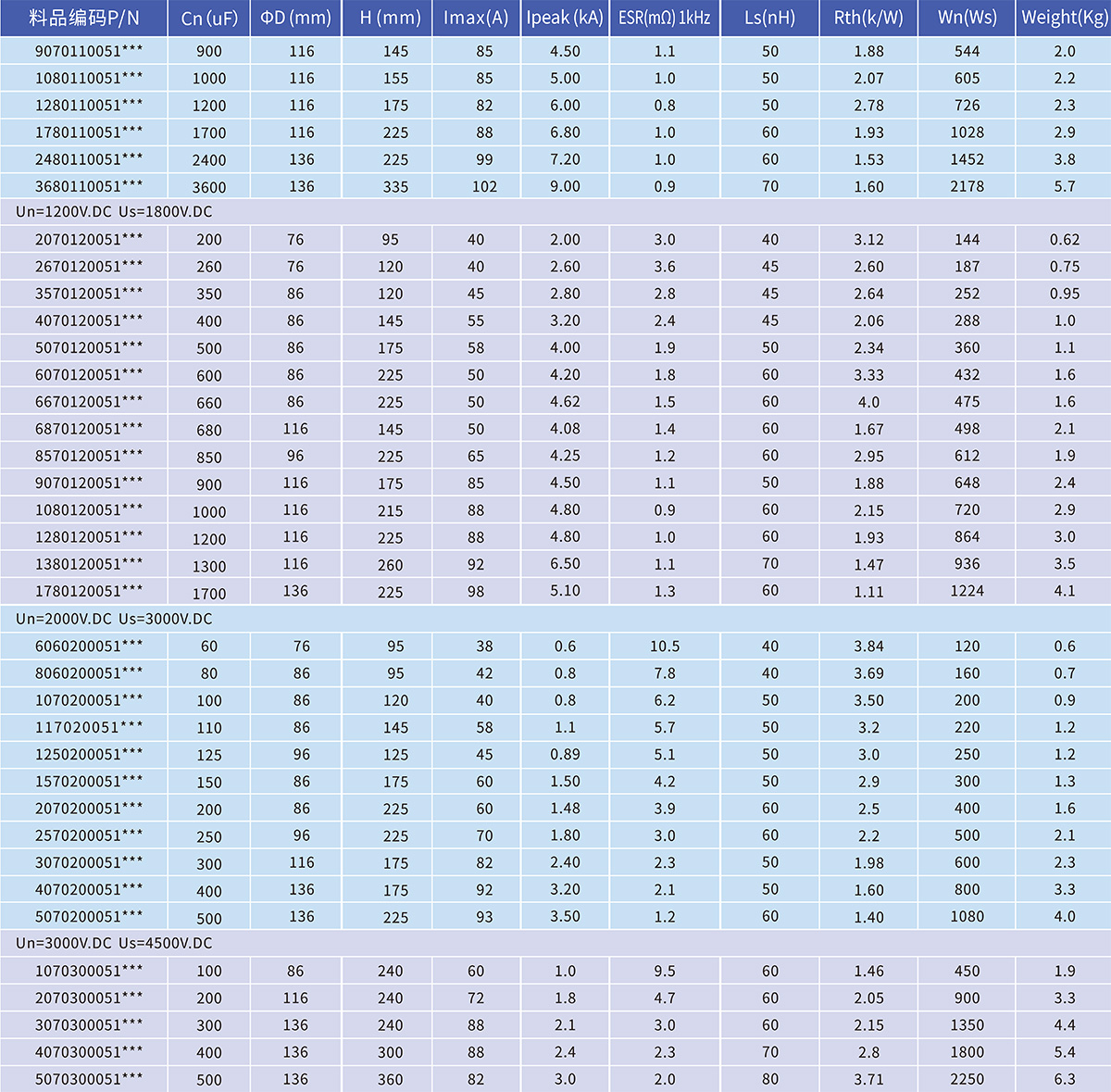

备注：详细规格清单及参数查询公司官方网站，或来电、邮件咨询。
Note: Detailed Specifications List and Parameters Query Company official website, or call, email inquiries
| 引用标准/Reference to Standard | GB/T17702 -2013，IEC61071-2007 |
| 结构形式/Structure | 金属化自愈式直流滤波电容，产品为干式 Metallized self-healing DC-Link capacitor, Dry type |
| 封装方式/Encapsulation | 铝原色，环氧封装 Aluminum case, Epoxy resin |
| 容量范围/Capacitance Range | 100~2600μF |
| 容量允许偏差/Capacitance Tolerance | ±5% (J)，±10% (K) |
| 电压范围/Voltage Range | 600V.DC~2200V.DC |
| 极壳耐压/Utc | 2Ui+1000V.AC/10S (50Hz) (≥2000V.AC)《或根据客户需求》 or (Refer to customer’s requirement) |
| 极间耐压/Utt | 1.5Un(DC)/10S |
| 损耗角/Dissipation Factor (tgδ) | tgδ≤0.003(at 10kHz) |
| 绝缘电阻/Insulation Resistance | Ri×C≥5000s |
| 气候类别/Climate Category | 40/85/21 |
| 工作温度范围/Working Temperature | -40℃~70℃ (最大85℃) |
| 储存温度范围/Storage Tempearture | -40℃~85℃ |
| 使用海拔/Altitude | ＜2000m |
| 最大电极扭矩/Max ElectrodeTorque | M6：3N.m |
| 最大安装扭矩/Max Install Torque | 10N.m |

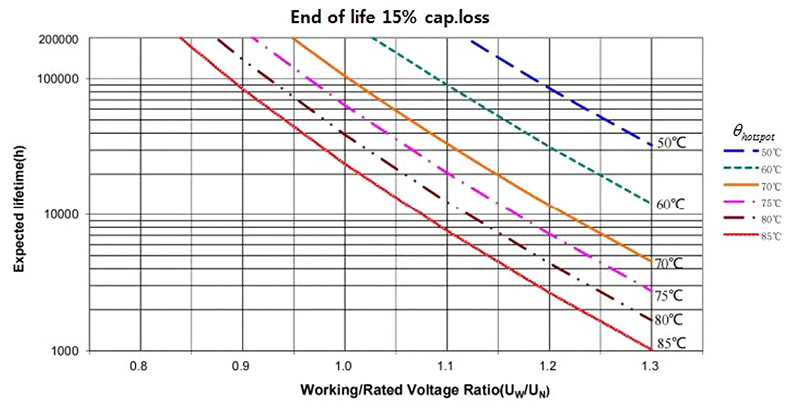

| 预期寿命/Expected life time | 100000h |
| 阻燃性/Flammability | UL94v-0 |
| 失效率/Failure Rate | 30FIT |
备注：如果海拔使用高度超过了2000m，应该考虑海拔对流冷却和外绝缘的影响。
Note: It should take consideration regarding to convectional cooling and outter insulation as long as the height is exceed 2000m
