● 变频器
● 高压软启动
● 中频炉电源
● Converter
● High voltage soft reset
● Intermediate frequency furnace power
备注：详细规格清单及参数查询公司官方网站，或来电、邮件咨询。
Note: Detailed Specifications List and Parameters Query Company official website, or call, email inquiries
| 引用标准/Reference to Standard | GB/T17702 -2013 |
| 结构形式/Structure | 金属薄膜无感式，产品为干式Metallized self-healing DC-Link capacitor, Dry type |

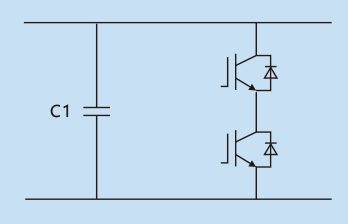

| 封装方式/Encapsulation | 白色迈拉胶带/塑料外壳，环氧封装 C1 C7 Out White mylar tape/ Plastic case, Epoxy resin |
| 容量范围/Capacitance Range | 0.1~4.7μF |
| 容量允许偏差/Capacitance Tolerance | ±5% (J)，±10% (K) |
| 电压范围/Voltage Range | 600V.DC~7000V.DC (50kHz) |
| 极间耐压/Utt | 1.5Un/10S |
| 损耗角/Dissipation Factor (tgδ) | tgδ≤0.0008 (at 1kHz) |
| 绝缘电阻/Insulation Resistance | Ri×C≥5000s (at 20℃ 100V.DC 60s) |
| 气候类别/Climate Category | 40/85/21 |
| 工作温度范围/Working Temperature | -40℃~85℃ |
| 储存温度范围/Storage Tempearture | -40℃~85℃ |
| 使用海拔/Altitude | ＜2000m |
| 预期寿命/Expected life time | 100000h |
| 阻燃性/Flammability | UL94v-0 |
| 失效率/Failure Rate | 30FIT |
备注：如果海拔使用高度超过了2000m，应该考虑海拔对流冷却和外绝缘的影响。
Note: It should take consideration regarding to convectional cooling and outter insulation as long as the height is exceed 2000m
