Applications

● SVG equipment

● Solar&Wind Power inverters

● Converters, power supply for Train

● Electronic vehicle and hybrid train

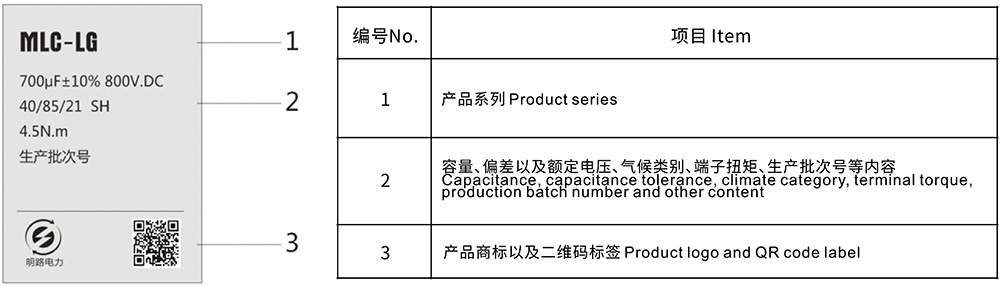

Label Specification

Technical data

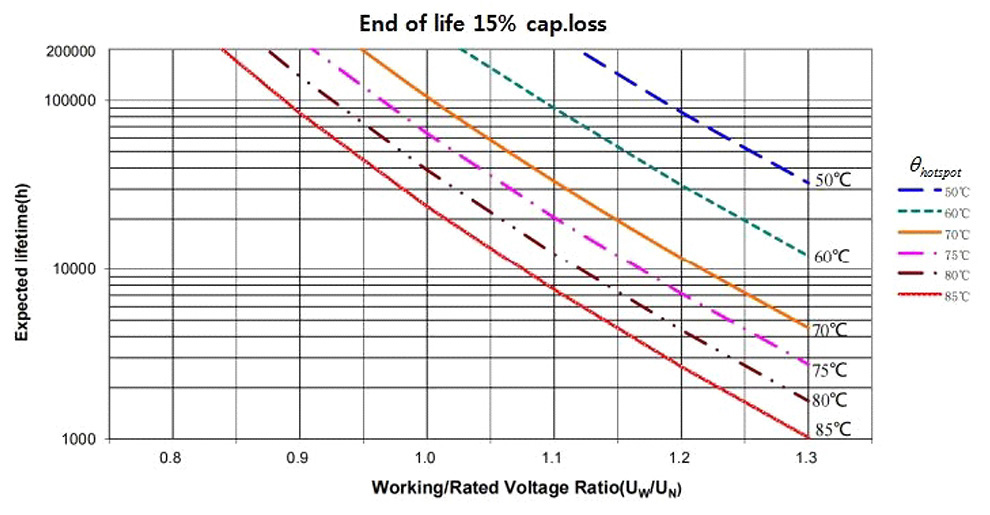

Life expectancy grap

Remark: Uw is the actual working voltage,Un isthe rated working voltage, and 0hotspot is the hottest temperature.

ln the application of capacitors, there are many factors that will affect the service life of capacitors, such as voltage, temperature, current, grid harmonics, light or radiation, and some other unknown factors.The following life expectancy curve only considers the relationship between voltage and temperature.Based on the qualified results of long-term endurance test, the life expectancy of the capacitor under different working conditions is calcuiated

Product datas

Note:

lt should take consideration regarding to convectional cooling and outter insulation as long as the height is exceed 2000m.

Other capacitances,voltages and dimensions are available on request

Detailed specifications list and parameters query company official website,or call, email inquiries.
