● GTO中突波的吸收
● 高频纹波电流直流滤波应用
● 高压脉冲，高频应用
● Surge absorb function in GTO
● Apply in high frequency ripple current DC filtering
● High voltage impuse, High frequency application
| 引用标准/Reference to Standard | GB/T17702 |
| 结构形式/Structure | 金属薄膜无感式，产品为干 式Metallized self-healing DC-Link capacitor, Dry type |

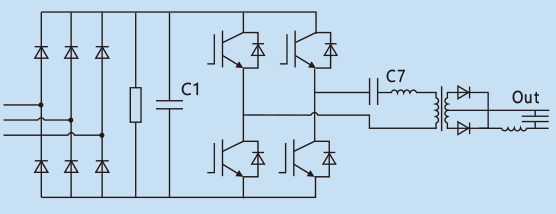

| 封装方式/Encapsulation | 白色迈拉胶带/塑料外壳，环氧封装 C1 C7 Out White mylar tape/ Plastic case, Epoxy resin |
| 容量范围/Capacitance Range | 5~100μF |
| 容量允许偏差/Capacitance Tolerance | ±5% (J)，±10% (K) |
| 电压范围/Voltage Range | 400V.DC~1600V.DC |
| 极间耐压/Utt | 1.5Un/10S |
| 损耗角/Dissipation Factor (tgδ) | tgδ≤0.0015 (at 1kHz) |
| 绝缘电阻/Insulation Resistance | Ri×C≥5000s (at 20℃ 100V.DC 60s) |
| 气候类别/Climate Category | 40/85/21 |
| 工作温度范围/Working Temperature | -40℃~85℃ |
| 储存温度范围/Storage Tempearture | -40℃~85℃ |
| 使用海拔/Altitude | ＜2000m |
| 最大电极扭矩/Max ElectrodeTorque | M6：3N.m / M8:6N.m / 参照IEC61881 |
| 预期寿命/Expected life time | 100000h |
| 阻燃性/Flammability | UL94v-0 |
| 失效率/Failure Rate | 30FIT |
