光伏逆变器专用金属化薄膜滤波电容器
特点/ Feature
● 寿命长
● 承受纹波电流能力强
● 等效串联电阻小、杂散电感低
● 自愈能力强

● Long life time
● Strong withstand ripple current
● Low ESR, low stray inductance
● Excellent Self-healing property
  • 案例详情
  • 更多内容

应用场合/ Applications

● 应用于直流滤波场合

● Used in DC filter application.

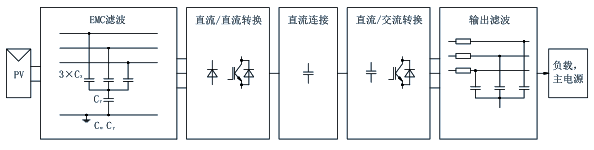

典型线路图/ Typical circuit

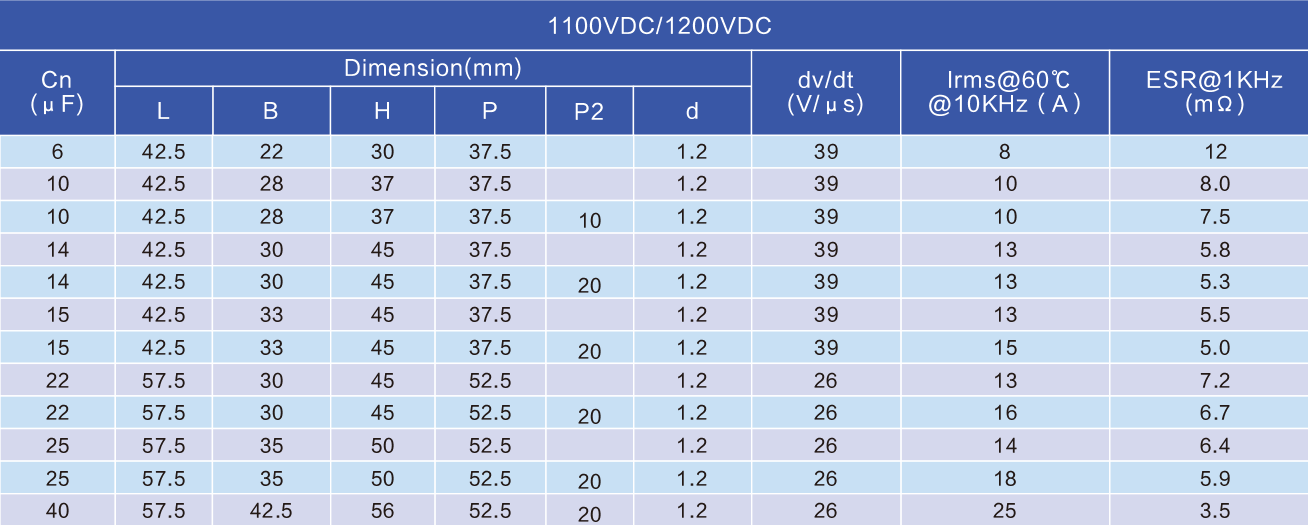

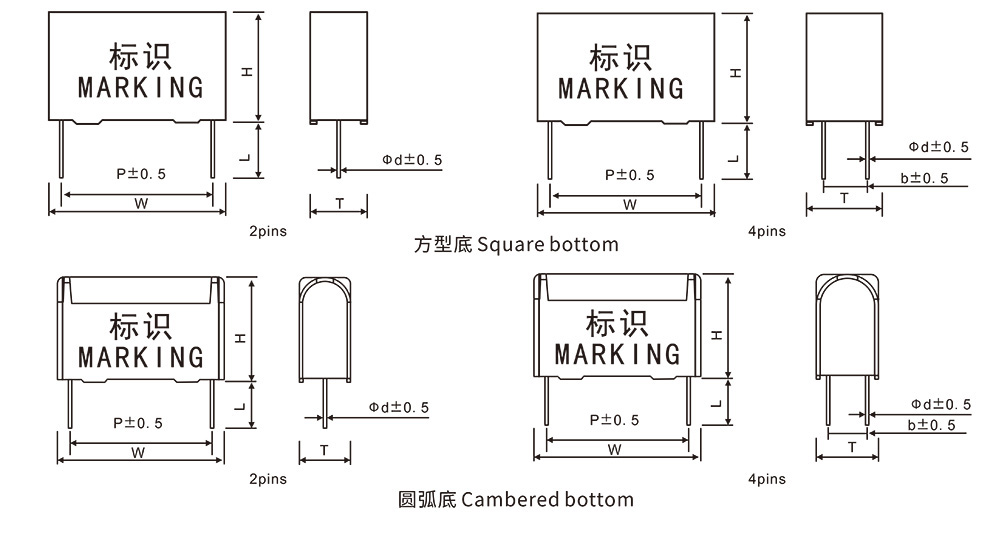

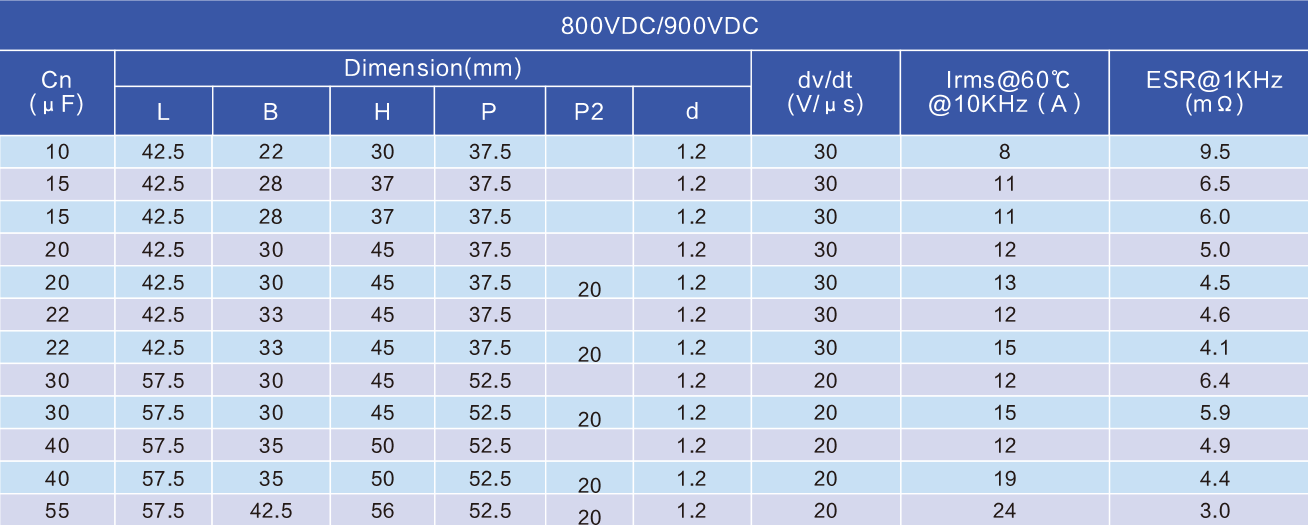

外形图及参考尺寸/Outline drawing





备注:详细规格清单及参数查询公司官方网站,或来电、邮件咨询。

Note: Detailed Specifications List and Parameters Query Company official website, or call, email inquiries

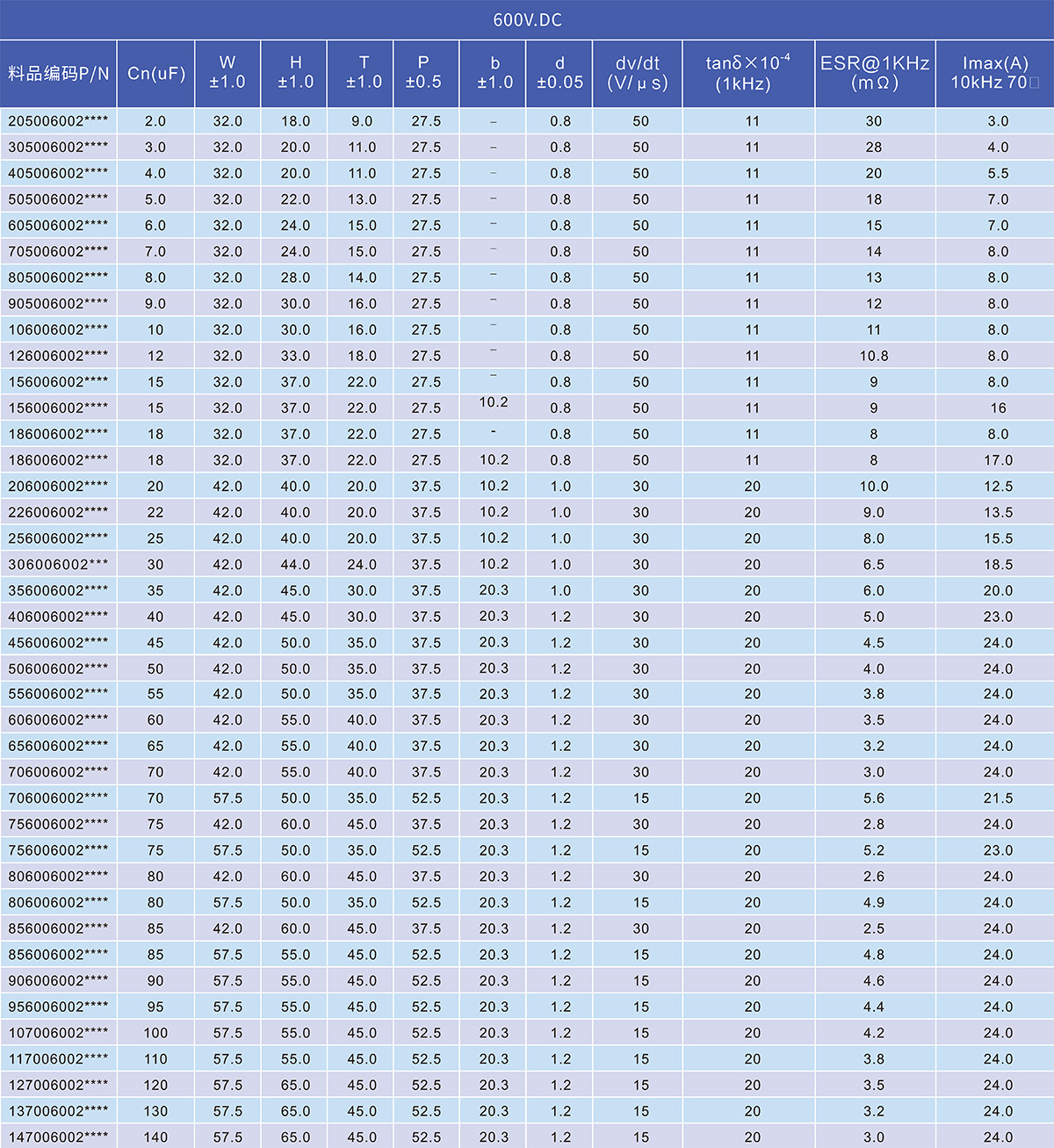

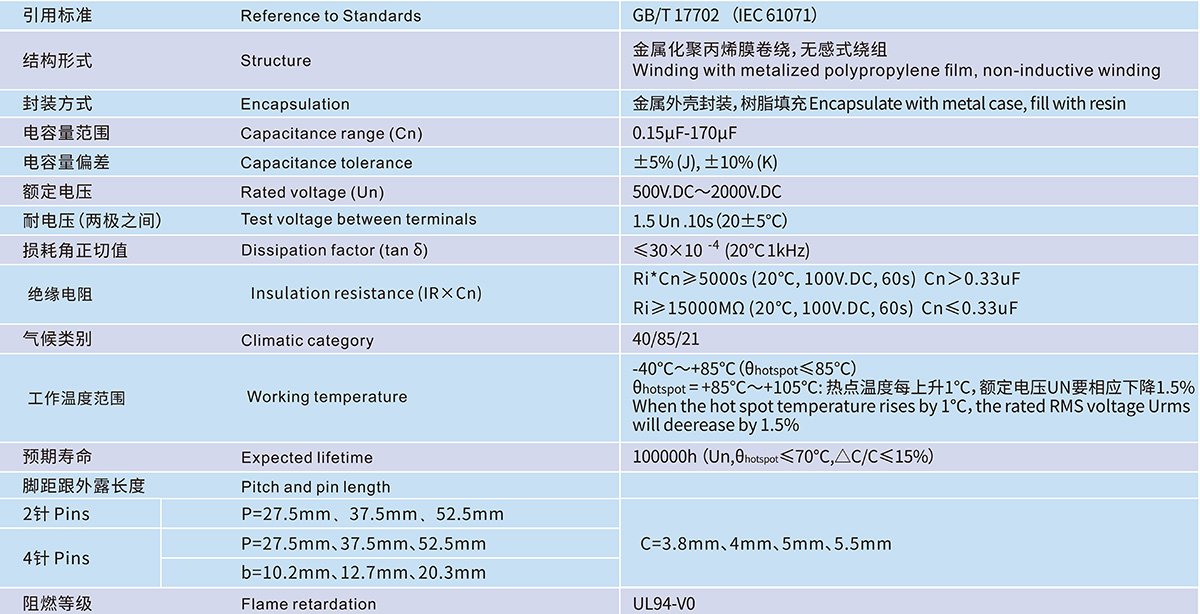

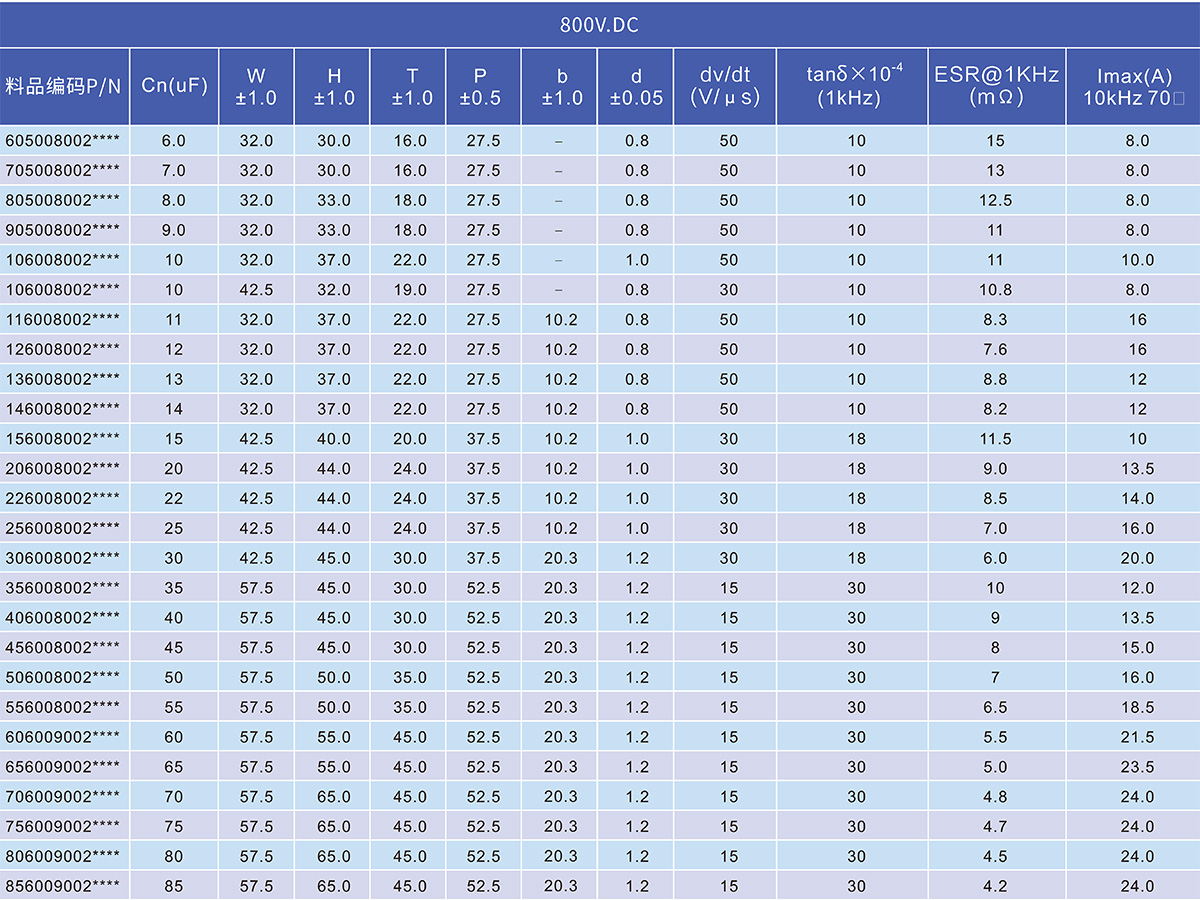

性能指标/ Technical data

引用标准/Reference to StandardGB/T17702,IEC61071
气候类别/Climate Category40/85/21
工作温度范围(外壳)/Working Temperature(case)-40℃~+85℃
电压范围/Voltage Range500~1100V.DC
容量范围/Capacitance Range5~100μF
容量偏差/Capacitance Tolerance±5%(J)、±10%(K)
损耗角正切/Dissipation Factor

≤10×10-4

绝缘电阻/Insulation Resistance≥10000s (20±5℃ 100V.DC 60S)
过电压/Overvoltage

1.1Un 30% of on-load-dur

1.15Un 30min/day

1.2Un 5min/day

1.3Un 1min/day

最高使用海拔/Max Altitude2000m
耐电压/Withstand Voltage1.5Un(60S,20±5℃)

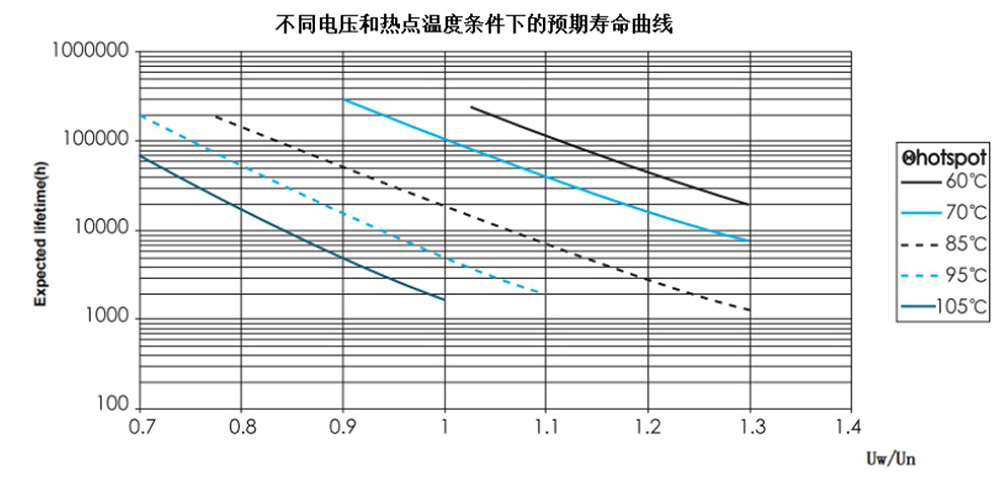

预期寿命/Expected life time100000h(Un,≤70℃)
失效率/Failure Rate50FIT

备注:如果海拔使用高度超过了2000m,应该考虑海拔对流冷却和外绝缘的影响。

 Note: It should take consideration regarding to convectional cooling and outter insulation as long as the height is exceed 2000m.
