● 广泛应用于高压高频脉冲电路中
● GTO中突波的吸收

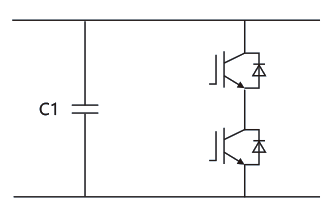

● 适合于IGBT的吸收保护
● Widely used in High voltage &frequency impulse circuit
● function in GTO
● Proper used in IGBT
备注：详细规格清单及参数查询公司官方网站，或来电、邮件咨询。
Note: Detailed Specifications List and Parameters Query Company official website, or call, email inquiries

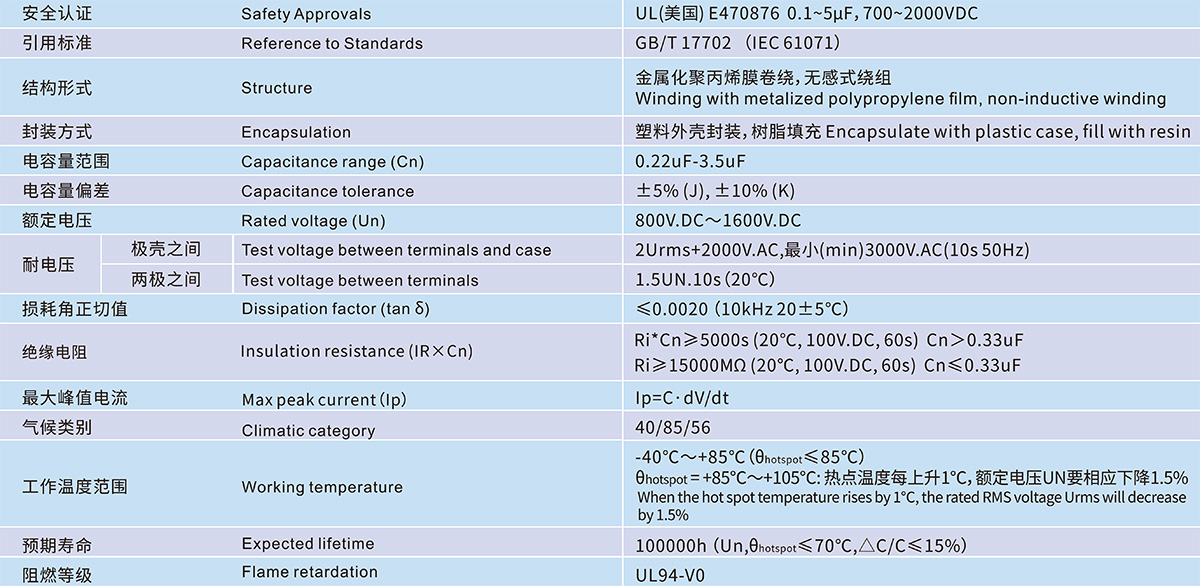

| 引用标准/Reference to Standard | GB/T17702 |
| 结构形式/Structure | 金属薄膜无感吸收保护电容，产品为干式 Metallized self-healing snubber capacitor, Dry type |
| 封装方式/Encapsulation | 塑料外壳，环氧封装 Plastic case, Epoxy resin |

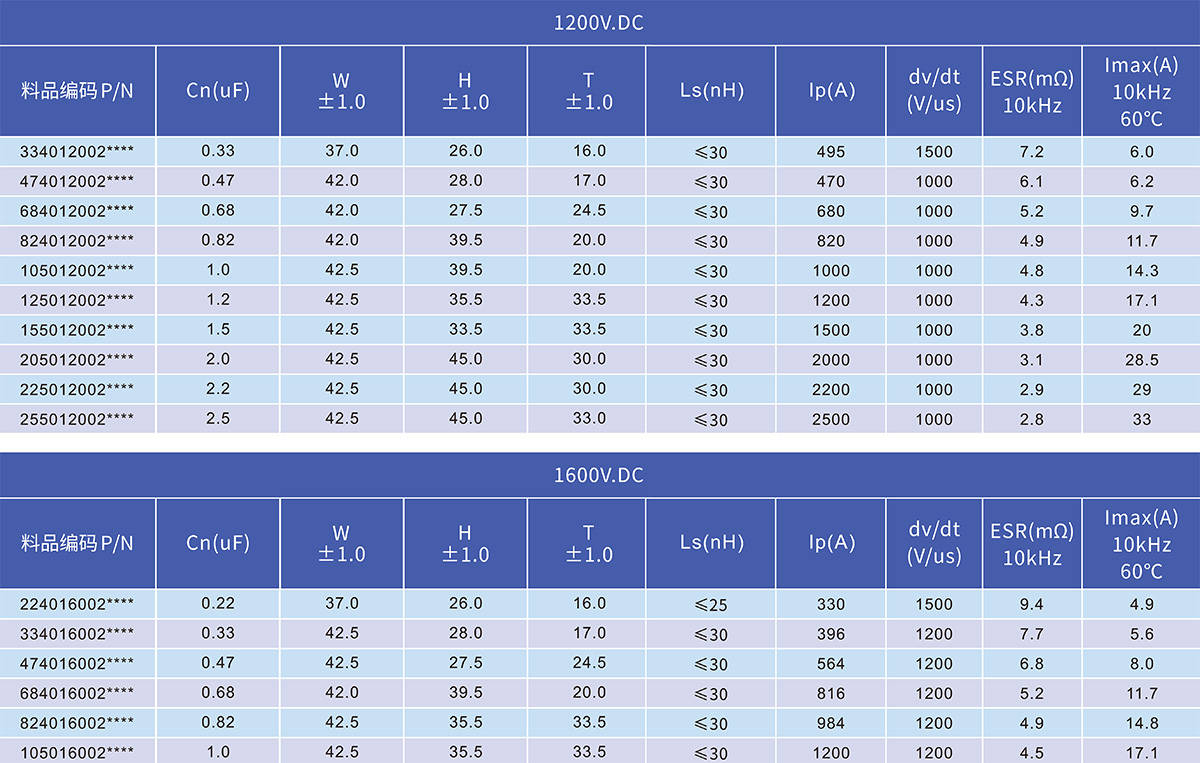

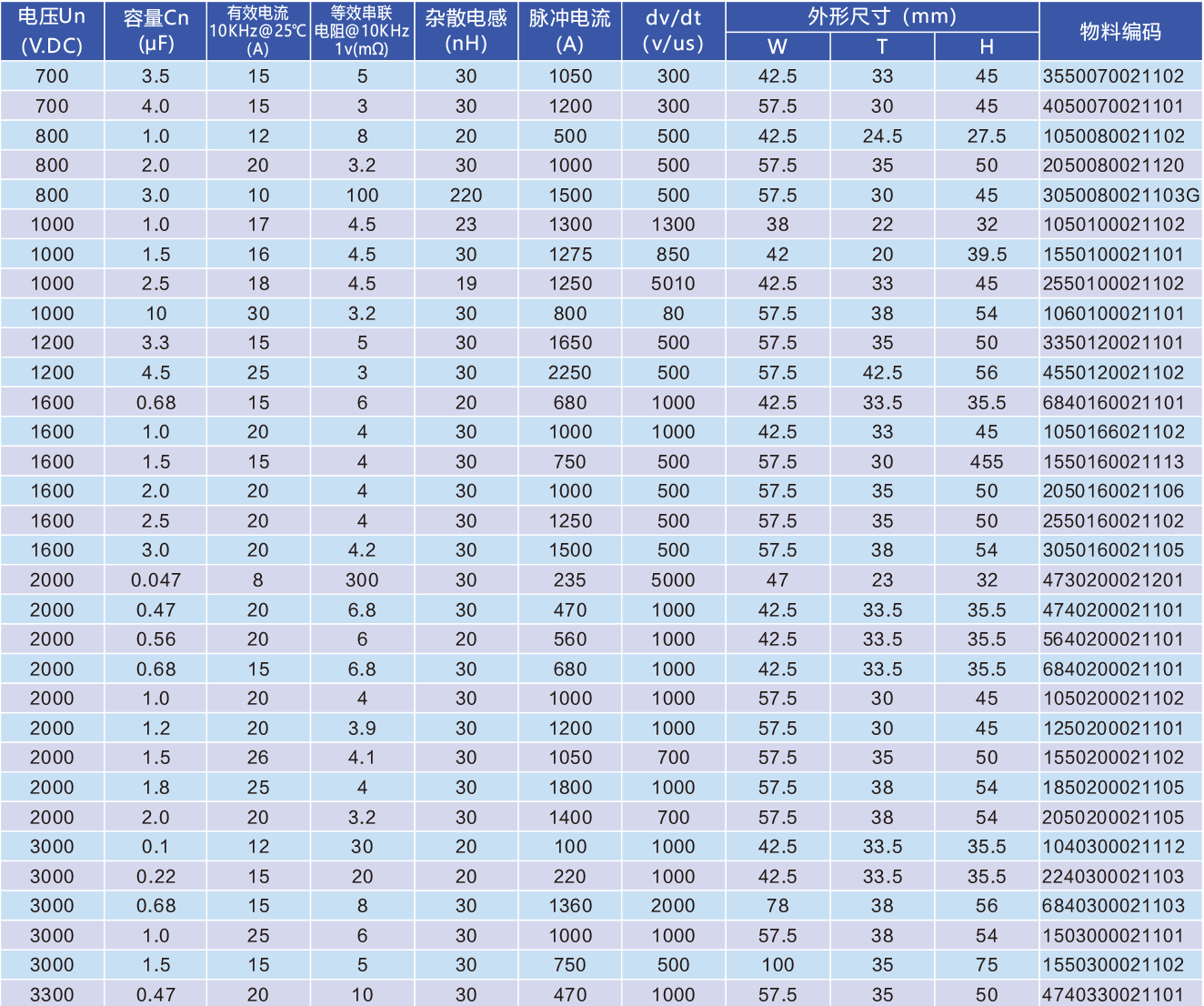

| 容量范围/Capacitance Range | 0.1~4.7μF |
| 容量允许偏差/Capacitance Tolerance | ±5% (J)，±10% (K) |
| 电压范围/Voltage Range | 600V.DC~3000V.DC |
| 极间耐压/Utt | 1.5Un(DC)/10S |
| 损耗角/Dissipation Factor (tgδ) | tgδ≤0.0008(at 10kHz) |
| 绝缘电阻/Insulation Resistance | IR≥15000MΩ C<0.33μF IR×C≥5000S C≥0.33μF |
| 气候类别/Climate Category | 40/85/21 |
| 工作温度范围/Working Temperature | -40℃~85℃ |
| 储存温度范围/Storage Tempearture | -40℃~85℃ |
| 使用海拔/Altitude | ＜2000m |

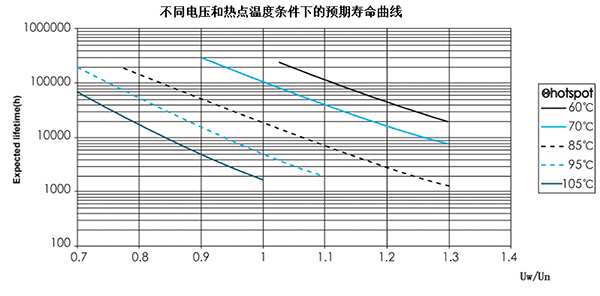

| 预期寿命/Expected life time | 100000h |
| 阻燃性/Flammability | UL94v-0 |
| 失效率/Failure Rate | 30FIT |
备注：如果海拔使用高度超过了2000m，应该考虑海拔对流冷却和外绝缘的影响。
Note: It should take consideration regarding to convectional cooling and outter insulation as long as the height is exceed 2000m
