In the large family of capacitors (including aluminum electrolytic capacitors, ceramic capacitors, film capacitors, etc.), the metallized film capacitor industry is particularly concerned. As a basic electronic component, it exists in almost all electronic circuits. Common application fields include household appliances, communications, power grids, rail transit, industrial control, lighting, new energy (photovoltaic, wind energy, automobile) and other industries.

With the "double carbon policy" proposed, the new energy vehicle and photovoltaic industry have developed rapidly. With its unique advantages, metallized film capacitors have seen orders several times larger than production capacity.

　　MLC-LM

　　Menlo MLC-LM The metallized film capacitor product is mainly used in photovoltaic inverters for DC filtering. The product has strong ability to withstand ripple current, small equivalent series resistance, low stray inductance, strong self-healing ability and long service life.

　　Typical circuit diagram

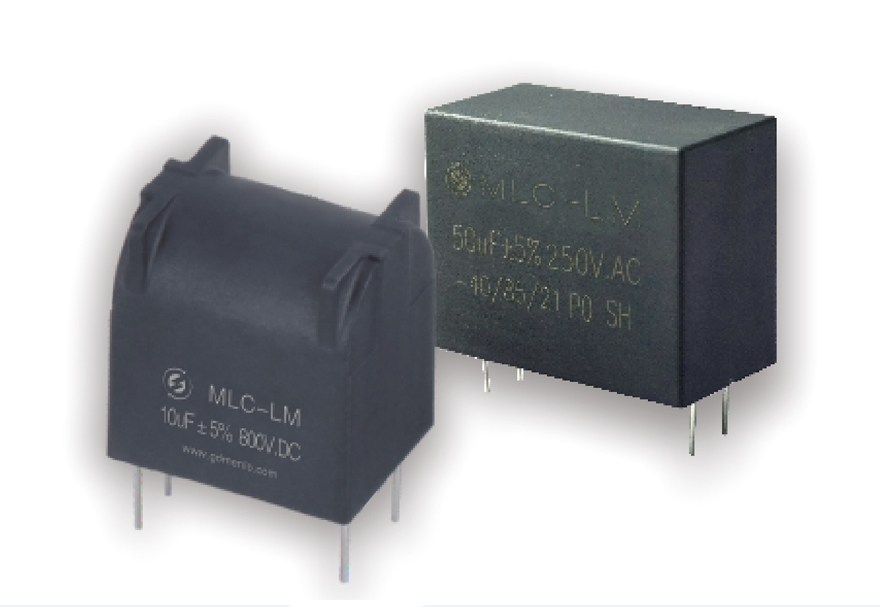

　　MLC-LM Product drawing

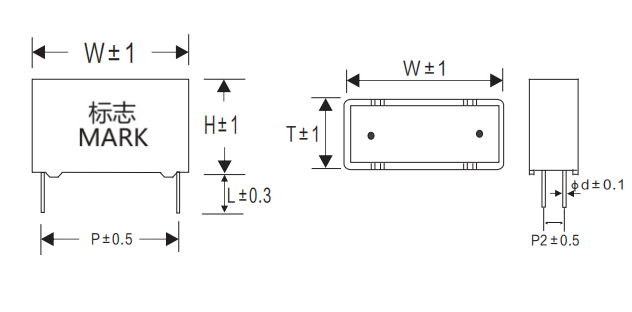

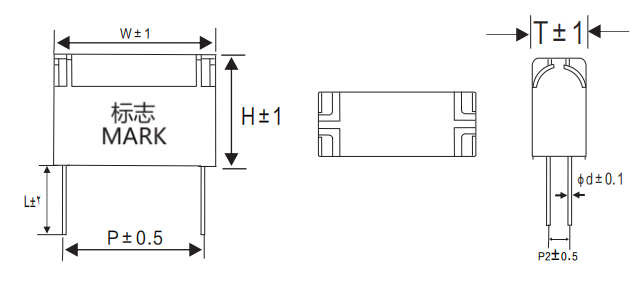

　　Outline drawing

Note: The above specifications are for model selection reference, and can be designed separately if there are special requirements.

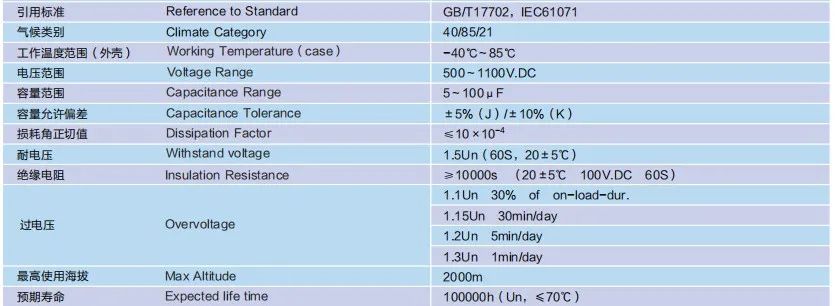

performance

index

Note: If the altitude exceeds 2000m, the impact of altitude on convection cooling and external insulation should be considered. Note: lt should take consideration regarding to convectional cooling and outter insulation as long as the height is exceed 2000m.

appearance

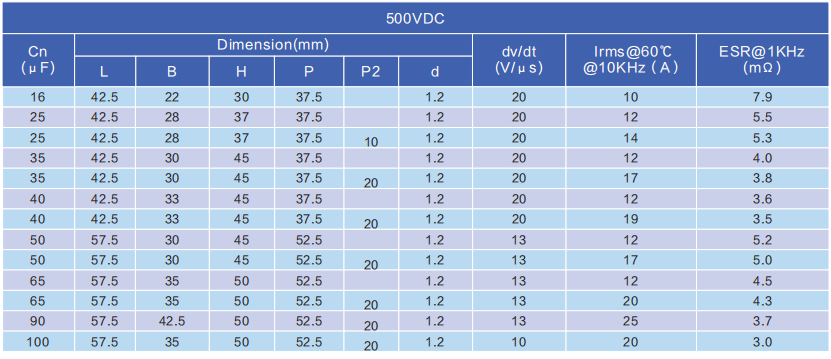

size

　　Note: Detailed Specifications List and Parameters Query Company official website, or call, email inquiries
